4K AI CCTV Surveillance

Enterprise physical security and intelligent video analytics engineered for corporate campuses, data centers, and industrial facilities. Featuring Hikvision, Dahua, and Axis 4K Ultra-HD (8MP) IP cameras, Automatic Number Plate Recognition (ANPR), AcuSense Deep Learning Perimeter Intrusion, Face Recognition, and 90-Day RAID NVR Video Storage.

videocam 4K Ultra-HD (8MP) Starlight Night-Vision Cameras directions_car License Plate Recognition (ANPR) & Barrier Automation psychology AcuSense Deep Learning Human/Vehicle Classification hard_drive 90-Day RAID 5/6 Hot-Swap NVR Video Storage

4K UHD (8MP) Ultra-HD Image Resolution

99.4% ANPR Plate Capture Accuracy

0.0005 Lux DarkFighter/Starlight Night Vision

90+ Days Continuous RAID Video Retention

TOPIC 01 // 4K ULTRA-HD IP CAMERAS & STARLIGHT NIGHT-VISION

Hikvision, Dahua & Axis 8MP DarkFighter Cameras

Capture every critical detail with crystal-clear 4K UHD (3840×2160) video resolution. Our enterprise IP bullet, dome, and PTZ cameras feature ultra-low light DarkFighter / ColorVu / Starlight sensors, 120dB True WDR (Wide Dynamic Range), and IK10 vandal-proof enclosures for uncompromised 24/7 campus coverage.

check_circle 4K (8MP) resolution providing 4x sharper clarity than standard 1080p security cameras.
check_circle Full-color night vision in near-total darkness (0.0005 Lux Starlight/ColorVu technology).
check_circle IK10 vandal-proof and IP67 weather-sealed housing engineered for extreme outdoor climates.

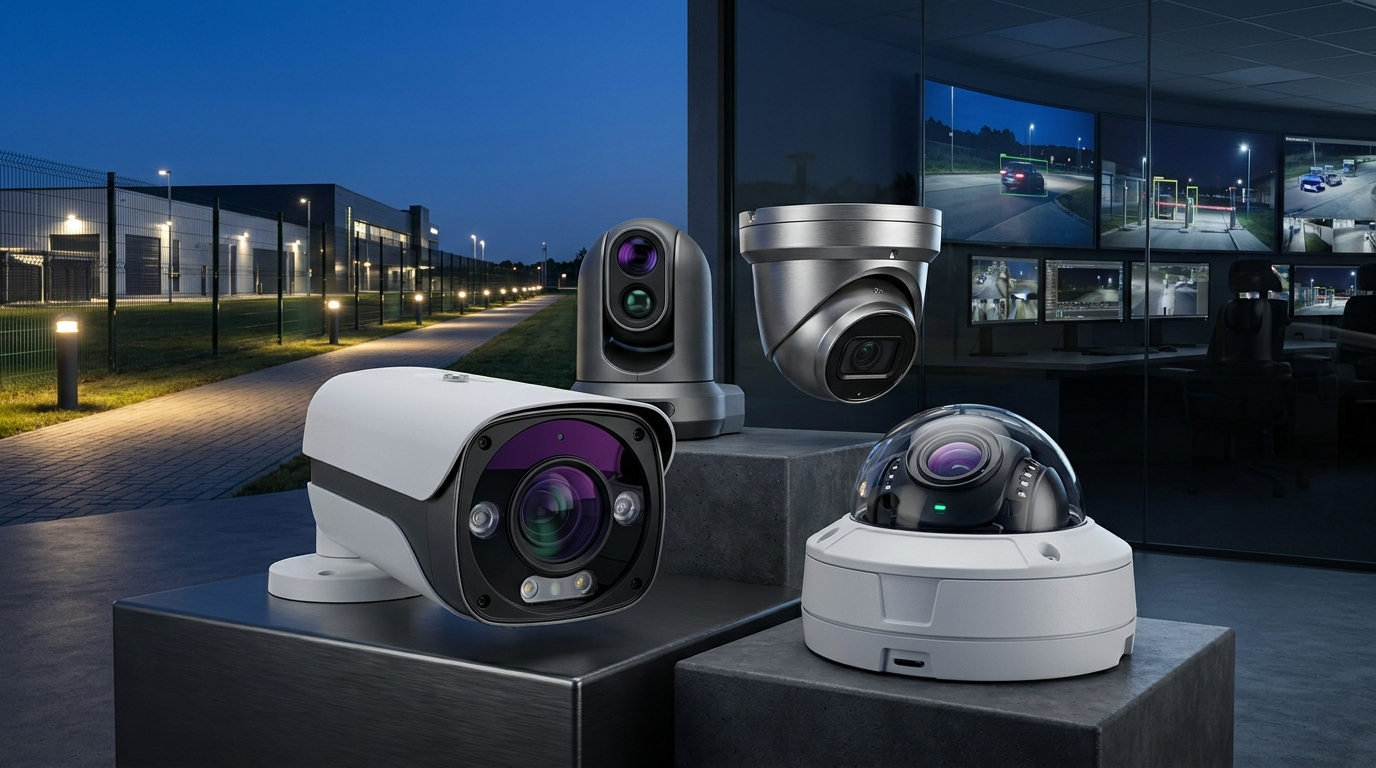

4K IP CCTV Camera Dome mounted in Enterprise Corridor

4K (8MP) DarkFighter Vandal-Proof IP Dome Camera

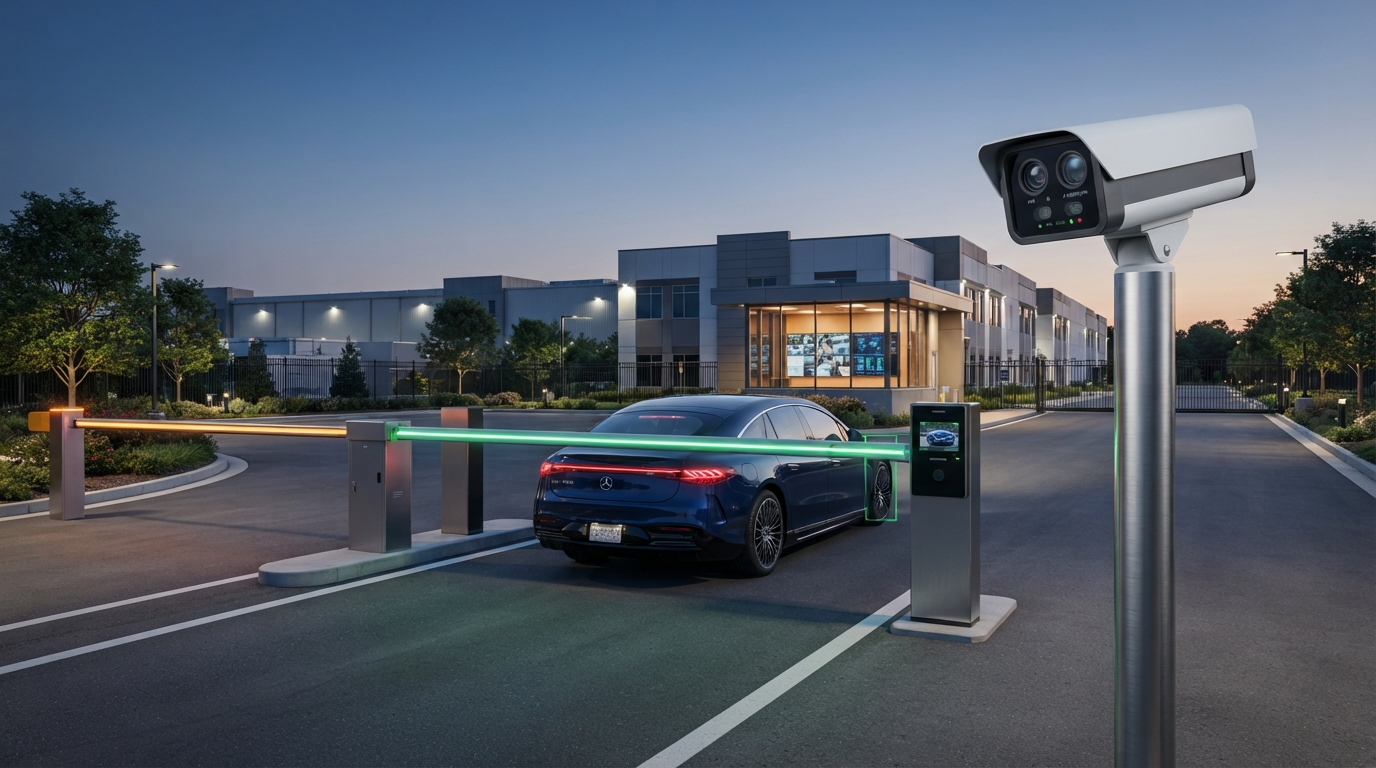

ANPR AI License Plate Camera Scanning Gate Entrance

AI Automatic Number Plate Recognition (ANPR) Gate Control

TOPIC 02 // AUTOMATIC NUMBER PLATE RECOGNITION (ANPR) & BARRIER

AI Vehicle Plate Capture & Automated Boom Gates

Automate vehicle access control and entry logging across corporate gates and parking structures. Specialized ANPR bullet cameras utilize deep learning algorithms to capture license plates with 99.4% accuracy at speeds up to 80 km/h, automatically triggering boom barriers for whitelisted employee vehicles.

check_circle 99.4% License plate recognition accuracy under harsh glare, rain, and nighttime conditions.
check_circle Direct relay integration with automated boom barriers, bollards, and RFID UHF readers.
check_circle Blacklist / Whitelist database management with instant security guard popup alerts.

TOPIC 03 // DEEP LEARNING ANALYTICS & 90-DAY RAID NVR STORAGE

AcuSense Perimeter Tripwire & High-Density NVR Arrays

Eliminate up to 98% of false alarm notifications caused by rain, falling leaves, or small animals. AcuSense deep learning analytics classify humans and vehicles in real time. Video feeds are ingested into 64-Channel RAID 5/6 NVR storage servers running Smart H.265+ zipstream video compression for 90-day video retention.

check_circle AcuSense Human & Vehicle target classification reducing false alarms by over 98%.
check_circle 64-Channel enterprise NVRs with hot-swappable RAID 5/6 storage for zero data loss.
check_circle Smart H.265+ video encoding reducing storage bandwidth consumption by up to 75%.

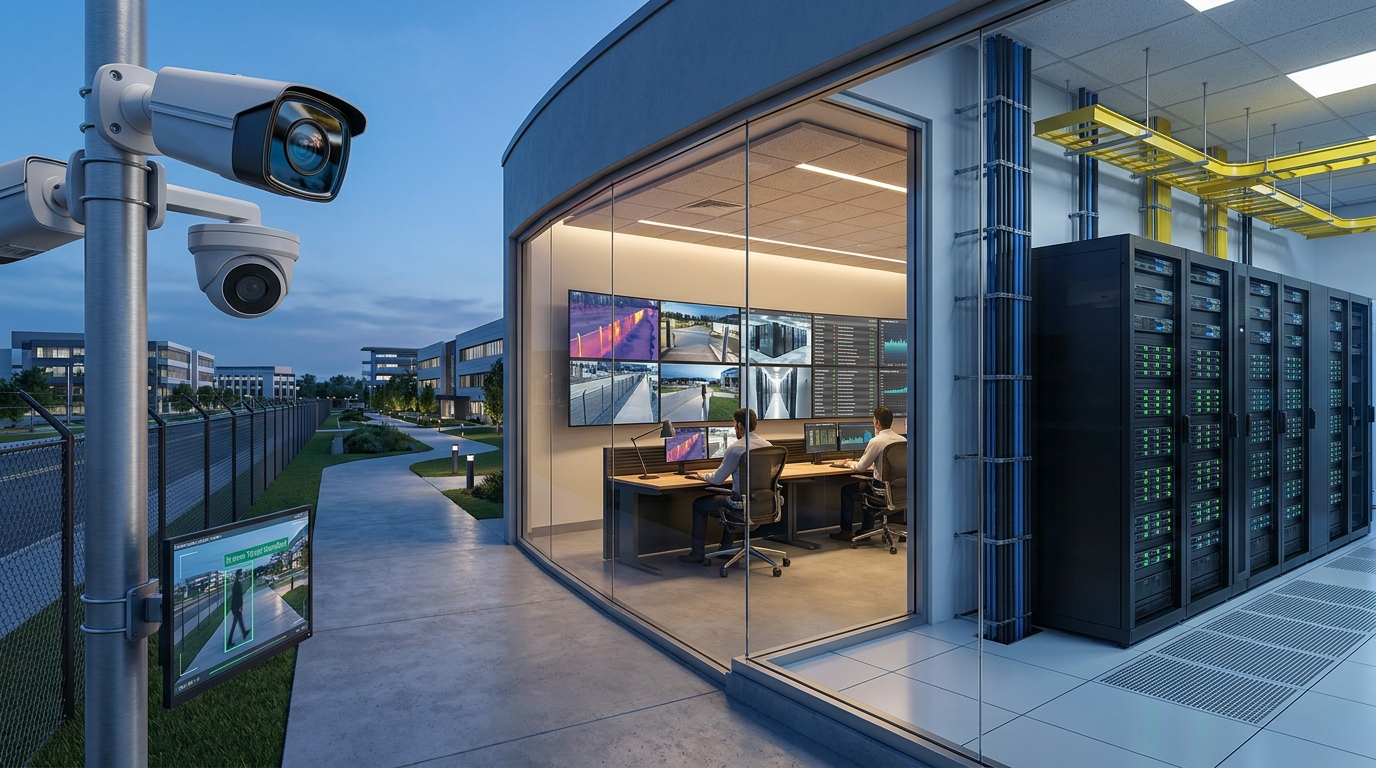

Enterprise Video Management System (VMS) Control Room Array

Enterprise Video Management System (VMS) & Command Wall

Engineering Specifications Matrix

Video Resolution	4K Ultra-HD (3840 x 2160 @ 30fps) 8-Megapixel CMOS Sensors
Image Sensor & Night Vision	1/1.8″ Progressive Scan CMOS, DarkFighter / ColorVu, 0.0005 Lux, 50m Smart IR
AI Video Analytics	AcuSense Deep Learning Perimeter Intrusion, Line Crossing, Face Detection, Heatmap
License Plate Recognition (ANPR)	Deep Learning ANPR, Vehicle Make/Color Recognition, Up to 80 km/h Capture Speed
Video Management System (VMS)	HikCentral / Dahua DSS / Milestone XProtect Enterprise VMS (ONVIF Profile S/G/T)
Storage Architecture	64-Channel NVR / IP-SAN, RAID 0/1/5/6/10 Hot-Swap Enterprise HDDs (Seagate SkyHawk AI)
Network Protocols & Security	H.265+ / HEVC Compression, HTTPS, TLS 1.3, IEEE 802.1X Access Control, IP Filtering

Related CCTV Cameras & NVR Bundles

4K DarkFighter dome cameras, AI ANPR bullet cameras, 64-channel RAID NVRs, and security audit services from Hikvision, Dahua, and Axis.

4K 8MP DarkFighter Vandal-Proof Dome Camera

4K 8MP DarkFighter Dome

Vandal-Proof IP Camera

4K Ultra-HD dome camera with 0.0005 Lux low-light vision, IK10 vandal rating, 120dB WDR, and built-in mic.

AI ANPR Bullet Camera

Automatic License Plate Capture

Motorized 8-32mm zoom ANPR camera capturing vehicle plates, color, and speed with direct gate relay trigger.

64-Channel Enterprise RAID NVR Video Server

64-Channel RAID 5/6 NVR

High-Density Video Storage

8-Bay enterprise NVR with hot-swappable RAID 5/6, dual redundant power supplies, and 384Mbps incoming bandwidth.

CCTV Security Audit & AI Video Analytics Trial Package

CCTV Audit & AI Analytics Trial

Site Survey & Proof of Concept

Includes site blind-spot thermal assessment, FOV camera positioning layout, bandwidth calculation, and 14-day AI POC trial.

Frequently Asked Questions

Technical answers regarding AcuSense deep learning false alarm reduction, ANPR license plate recognition gate integration, H.265+ storage savings, and ONVIF camera compatibility.

1. How does AcuSense Deep Learning eliminate false perimeter alarms?

▼

Traditional motion detection triggers alarms whenever pixels change—such as moving tree branches, rain, shadows, or passing animals. AcuSense deep learning algorithms analyze shape, motion, and feature vectors to filter out non-target objects, triggering alarms only when a human or vehicle crosses a defined perimeter tripwire, reducing false alerts by over 98%.

2. How does ANPR license plate recognition integrate with boom barriers for automated entry?

▼

ANPR cameras scan approaching vehicle license plates in real time and match the text against an internal whitelist database. When an authorized plate is recognized, the camera outputs a dry-contact relay pulse directly to the boom barrier controller, opening the gate in under 0.5 seconds without requiring the driver to tap a card or stop.

3. How much bandwidth and storage does H.265+ video encoding save over standard H.264?

▼

Smart H.265+ encoding uses predictive scene modeling, dynamic ROI (Region of Interest), and intelligent noise reduction to compress static background areas while preserving maximum detail on moving targets. This reduces storage storage and network bandwidth consumption by up to 75% compared to standard H.264.

4. What is ONVIF compliance and why is it important for multi-vendor camera setups?

▼

ONVIF (Open Network Video Interface Forum) is an open global standard for IP security products. ONVIF Profile S (video streaming), Profile G (edge storage), and Profile T (advanced video streaming) ensure seamless interoperability between different camera brands (e.g. Axis, Hikvision, Dahua) and central VMS software like Milestone or Genetec.

5. How does RAID 5/6 storage protect NVR recordings from hard drive failure?

▼

Enterprise NVRs strip video data and parity bits across multiple surveillance-grade hard drives. RAID 5 allows the system to continue operating without data loss if 1 hard drive fails, while RAID 6 protects against simultaneous failure of 2 drives. Hot-swappable drive bays allow technicians to replace failed HDDs while the NVR continues recording seamlessly.
