Rack & Cabinet Infrastructure

High-density server cabinets and network enclosure systems engineered for optimal airflow, cable management, and physical security. Featuring 42U, 48U, and 52U server racks with 83%+ high-perforation mesh doors, 1500 kg static load capacity, integrated Zero-U PDU channels, toolless mounting rails, and smart RFID electronic locks.

dns 42U / 48U / 52U High-Density Server Racks air 83%+ Hexagonal Perforation Airflow Doors fitness_center 1500 kg Heavy-Duty Static Load Capacity lock Smart Electronic Lock & Zero-U Cable Trunks

83% Perforation Open Area Ratio

1500 kg Static Load Capacity Rating

Zero-U Toolless PDU & Cable Mounting

IP55 / IK10 Industrial Protection Standards

TOPIC 01 // 42U/48U/52U HIGH-PERFORATION AIRFLOW RACKS

APC NetShelter, Vertiv VR & NetRack Server Cabinets

Maximize cooling efficiency and thermal throughput for high-density servers. Our 42U, 48U, and 52U server cabinets feature 83%+ high-perforation hexagonal mesh doors, adjustable 19-inch mounting rails with laser-etched U-markings, and heavy-duty cold-rolled steel frames supporting up to 1500 kg static loads.

check_circle 83%+ open perforation area mesh doors maximizing cold aisle intake CFM airflow.
check_circle Heavy-gauge 2.0mm steel frame supporting 1500 kg static / 1200 kg dynamic load rating.
check_circle Multi-vendor compatibility housing HPE, Dell PowerEdge, Cisco UCS, and Lenovo servers.

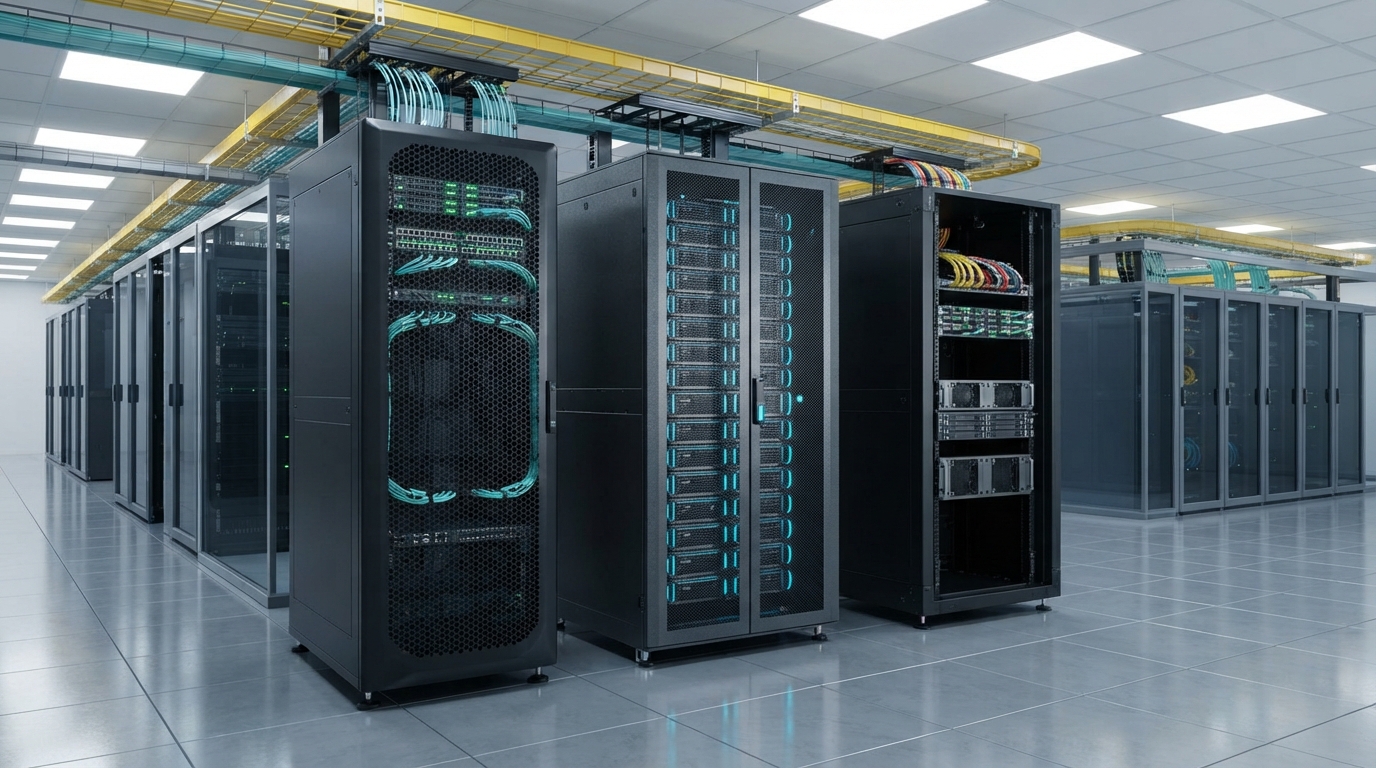

High-Density 42U/48U Server Rack Cabinets in Data Center

High-Density 42U/48U Server Rack Enclosures

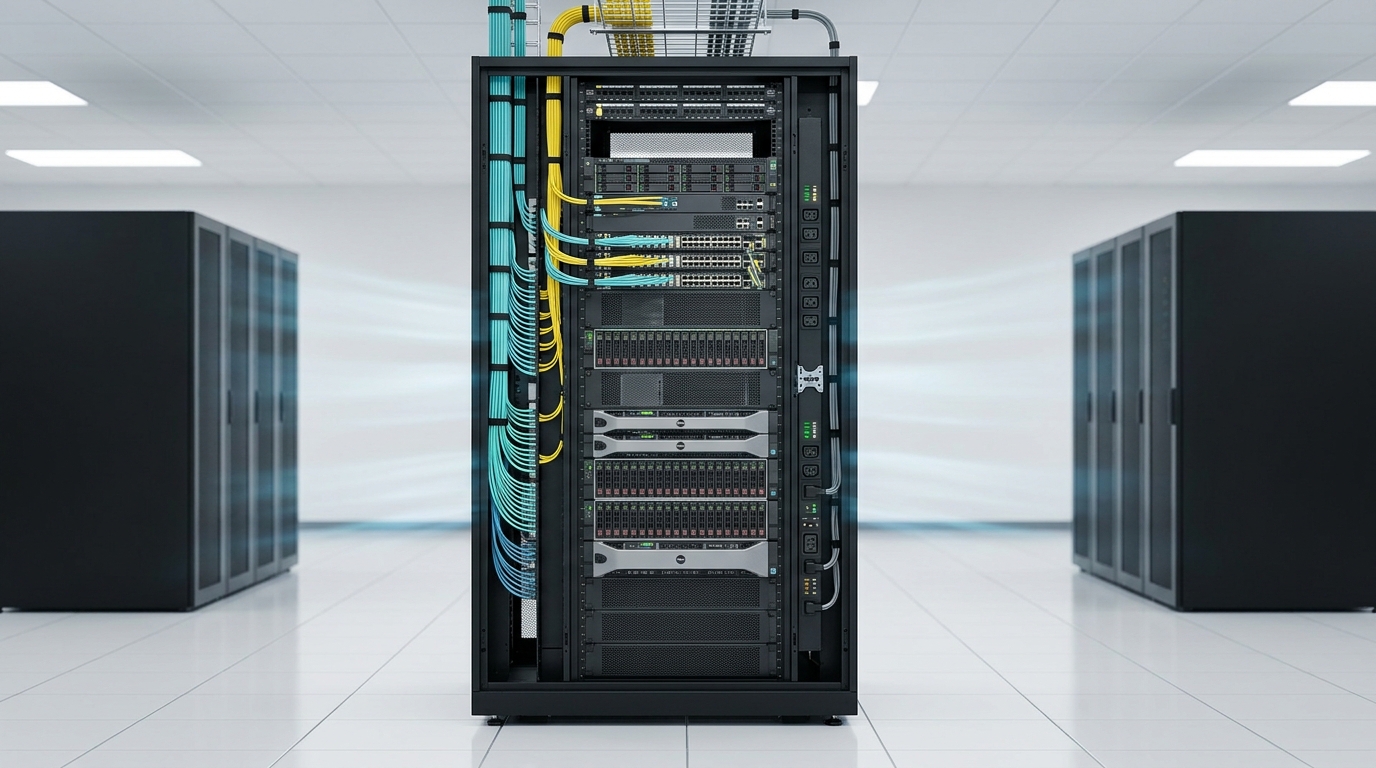

Zero-U Vertical Cable Management and Patching Array

Zero-U High-Density Cable Management Trunks

TOPIC 02 // ZERO-U CABLE MANAGEMENT & PDU CHANNELS

Integrated Vertical Cable Trunks & Toolless PDU Slots

Eliminate cable clutter and preserve 100% of usable 19-inch rack EIA mounting space. Built-in Zero-U vertical cable channels feature finger-duct organizers, bend-radius control spools for fiber optics, and toolless button-mount slots designed for dual vertical switched iPDUs.

check_circle Dual-side Zero-U vertical cable trunks separating power cables from fiber patch cords.
check_circle Toolless keyhole mounting slots for installing vertical 0U dual-redundant iPDUs.
check_circle Top roof cable entry ports with high-density brush strips preventing cold air leakage.

TOPIC 03 // PHYSICAL SECURITY & SMART ELECTRONIC LOCKS

RFID Card, Biometric & Smart Electronic Handle Locks

Enforce zero-trust physical security down to the individual rack door level. Replace mechanical keys with smart electronic swing-handles supporting RFID proximity cards, PIN keypads, or biometric fingerprint scanners, fully integrated into central access control and DCIM software for real-time audit logging.

check_circle Smart electronic swing-handle locks with RFID / NFC and mechanical key override.
check_circle Integrated door contact sensors providing immediate alarms on unauthorized door opening.
check_circle Full integration with DCIM software logging exact timestamps of every door access attempt.

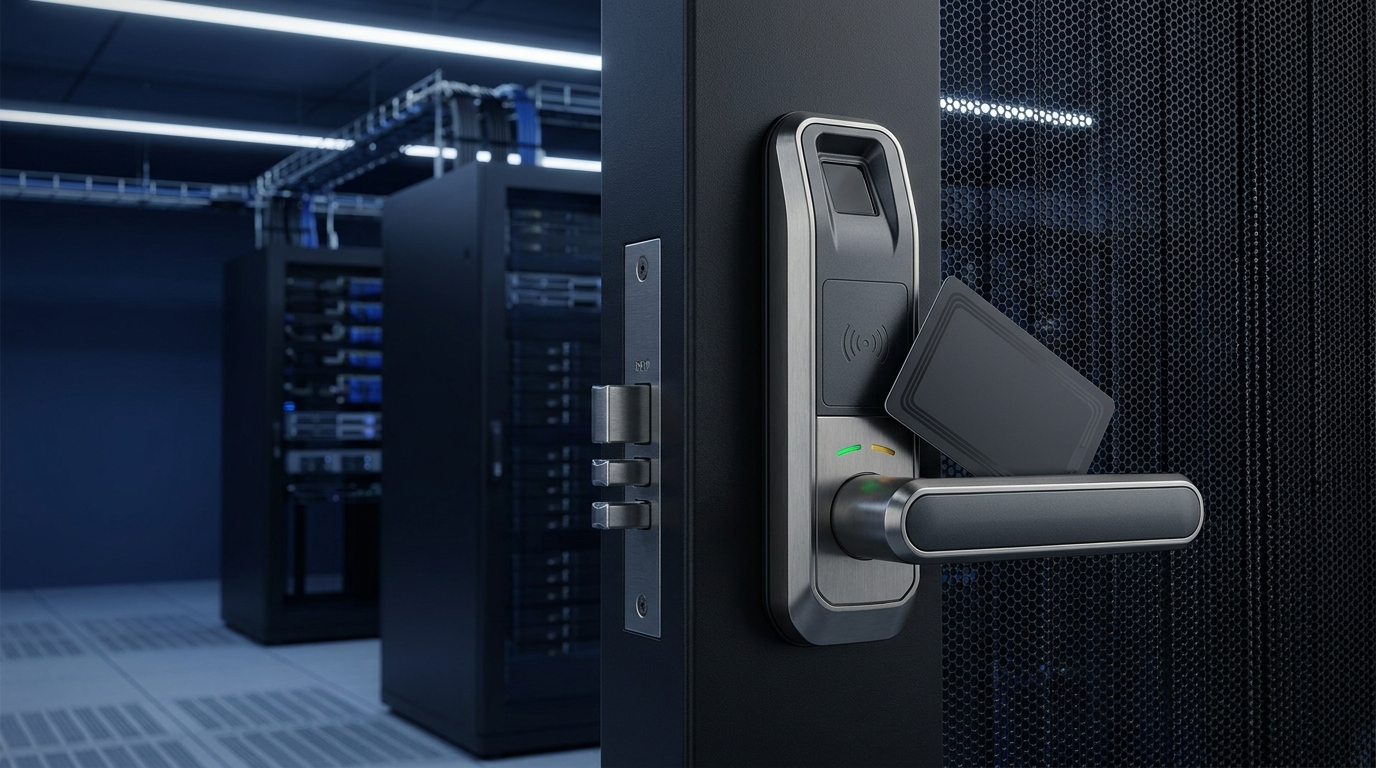

Smart RFID Electronic Lock Handle on Server Rack

Smart RFID & Biometric Electronic Handle Lock

Engineering Specifications Matrix

Rack Unit Heights	42U, 48U, and 52U Standard EIA-310-E 19-Inch Enclosures
Frame Structure & Load	Cold-Rolled Steel Frame: 1500 kg Static Load / 1200 kg Dynamic Load Rating
Airflow Perforation	83%+ Hexagonal Open Area Perforated Front & Split Rear Mesh Doors
Cable Management	Zero-U Vertical Trunks, Fiber Radius Spools, Brush-Strip Cable Entry Roof Ports
Physical Security Access	Smart Electronic Swing-Handles (RFID, NFC, PIN, Biometric) & Door Sensors
Mounting Depth	Adjustable 19-Inch Mounting Rails (Up to 1050mm / 42 Inches Deep)
Environmental & Ingress	IP20 (Standard Data Center) / IP55 & IK10 Industrial Sealed Options

Related Server Racks & Cabinet Accessories

High-density 42U/48U server enclosures, vertical cable trunks, smart electronic handle locks, and rack staging services from APC, Vertiv, and NetRack.

42U / 48U High-Perforation Enterprise Server Rack

42U / 48U High-Perforation Rack

APC NetShelter / Vertiv VR

Enterprise 800mm x 1200mm server cabinet with 83% airflow doors, 1500kg load capacity, and split rear mesh doors.

0U Vertical High-Density Cable Manager Trunk

0U Vertical Cable Manager Trunk

High-Density Cable & PDU Mount

Toolless vertical cable trunk with finger-duct organizers, fiber spool managers, and dual iPDU mounting channels.

RFID & Biometric Smart Electronic Lock Swing-Handle

Smart Electronic Handle Lock

Rack-Level Physical Security

RFID card and PIN keypad electronic swing-handle lock with door tamper sensors and DCIM integration.

Data Center Rack Elevation & Airflow Containment Staging Service

Rack Staging & Elevation Service

Turnkey Assembly & Cabling

Includes rack assembly, 19-inch rail adjustment, blanking plate installation, vertical PDU mounting, and cable dressing.

Frequently Asked Questions

Technical answers regarding 83%+ perforation door airflow advantages, choosing 42U vs 48U rack heights, Zero-U cable routing, and electronic lock security.

1. Why are 83%+ high-perforation mesh doors mandatory for modern high-density server racks?

▼

High-density 1U/2U servers equipped with multi-core CPUs and GPUs draw massive volumes of CFM cold air. Doors with low perforation restrict airflow, causing static pressure buildup and server fan speed spikes. 83%+ open area hexagonal perforations allow unrestricted cold aisle air intake, keeping server internal temperatures optimal.

2. How do I choose between 42U, 48U, and 52U server rack heights?

▼

42U (2.0 meters tall) is the industry standard for facilities with standard ceiling heights. 48U and 52U racks utilize vertical space to gain 15-25% more U-space per square foot of data center floor, ideal for high-density facilities with tall ceilings and aisle containment systems.

3. What is Zero-U cable management and why is it preferred over 1U horizontal cable trays?

▼

Zero-U cable managers route power and data cables along the vertical side channels outside the 19-inch mounting EIA space. This leaves 100% of the front-facing U-space available for server equipment, prevents airflow blockages across the front of servers, and simplifies cable tracing.

4. Why is a 1500 kg static load capacity rating essential for GPU and SAN storage cabinets?

▼

Modern 4U GPU servers (e.g. Nvidia HGX H100) and All-Flash NVMe storage enclosures can weigh up to 45-50 kg each. A fully loaded 42U rack containing 10-12 such devices easily exceeds 700-900 kg. A 1500 kg heavy-duty static load capacity rating guarantees structural stability without frame sagging or door misalignment.

5. How do smart electronic handle locks integrate with central DCIM and access control?

▼

Smart electronic handles connect to IP network controllers via Wiegand or RS485 interfaces. They communicate with your building access control system (HID / Mifare) or DCIM software, requiring authorized RFID card or PIN authentication to open specific server cabinet doors while capturing full audit logs for SOC compliance.
