Structured Cabling System

High-performance physical layer cabling infrastructure engineered for enterprise networks, campus backbones, and data centers. Featuring CommScope Systimax, Schneider Actassi, and D-Link Category 6A F/UTP 10Gbps copper cabling, Single-Mode OS2 & Multi-Mode OM4 armored fiber optics, 25-Year Manufacturer System Warranties, and 100% Fluke Versiv Cable Analyzer Certification testing.

cable Cat6A 10Gbps 500MHz Shielded Copper Cabling settings_ethernet Single-Mode OS2 & OM4/OM5 Armored Fiber Optics fact_check 100% Fluke Versiv DSX-8000 Certification Reports verified_user 25-Year Vendor System Performance Warranty

10 Gbps High-Speed Copper Bandwidth

500 MHz Cat6A Transmission Frequency

100% Fluke DSX-8000 Certified Pass

25 Years System Performance Warranty

TOPIC 01 // CAT6A 10GBPS SHIELDED COPPER CABLING

CommScope Systimax, Schneider & D-Link Cat6A Solutions

Future-proof your horizontal LAN cabling for high-speed 10GBASE-T data transfers and 90W 802.3bt Power-over-Ethernet (PoE++). Our Category 6A F/UTP and S/FTP shielded copper cabling systems operate at 500MHz frequencies, eliminating Alien Crosstalk (ANEXT) across dense cable bundles.

check_circle 10Gbps transmission speeds up to 100 meters guaranteed under ANSI/TIA-568.2-D standards.
check_circle Full-shielded foil jacket preventing Alien Crosstalk (ANEXT) in high-density cable trays.
check_circle Supports 90W 4PPoE (IEEE 802.3bt) for Wi-Fi 6E/7 Access Points, PTZ cameras, and smart LED lighting.

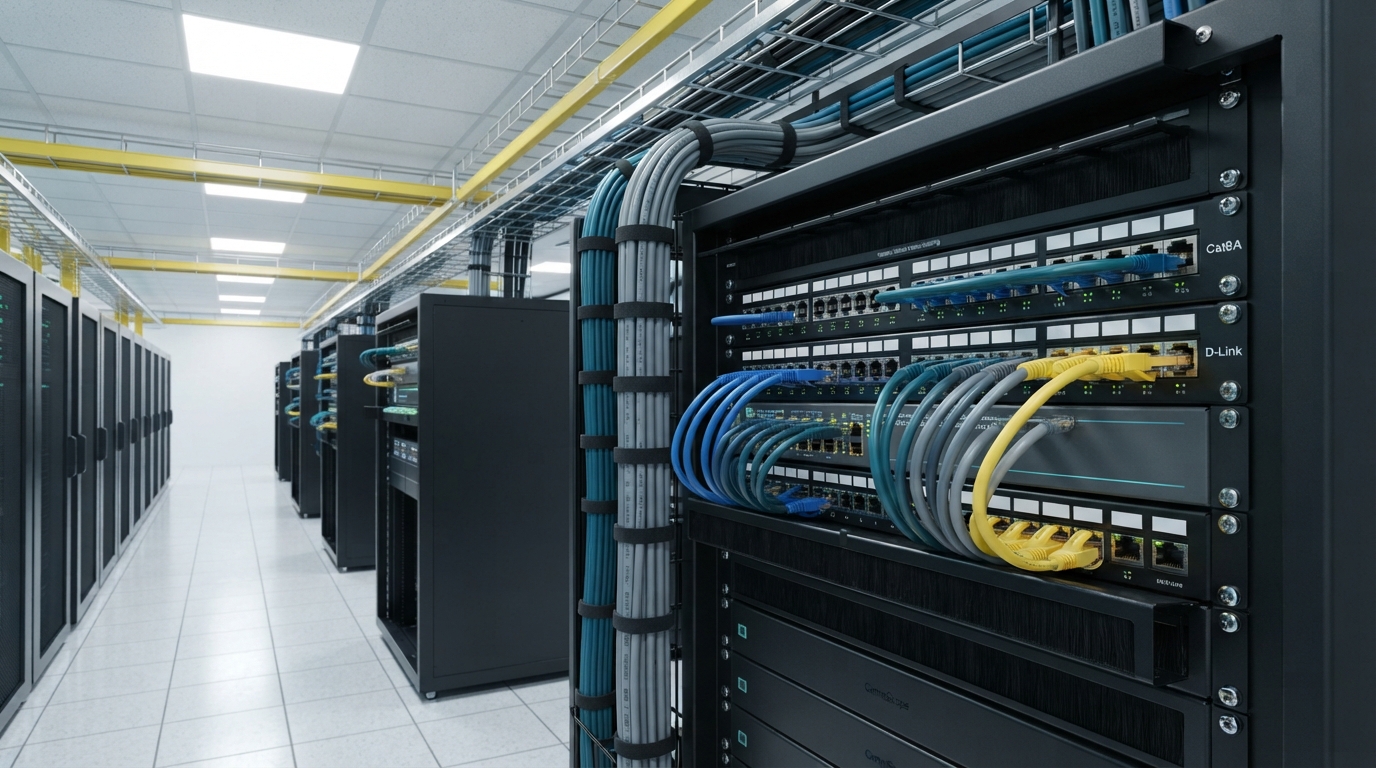

High-Density Cat6A Patch Panel Array in Server Rack

High-Density 24-Port Cat6A Shielded Patch Panel Array

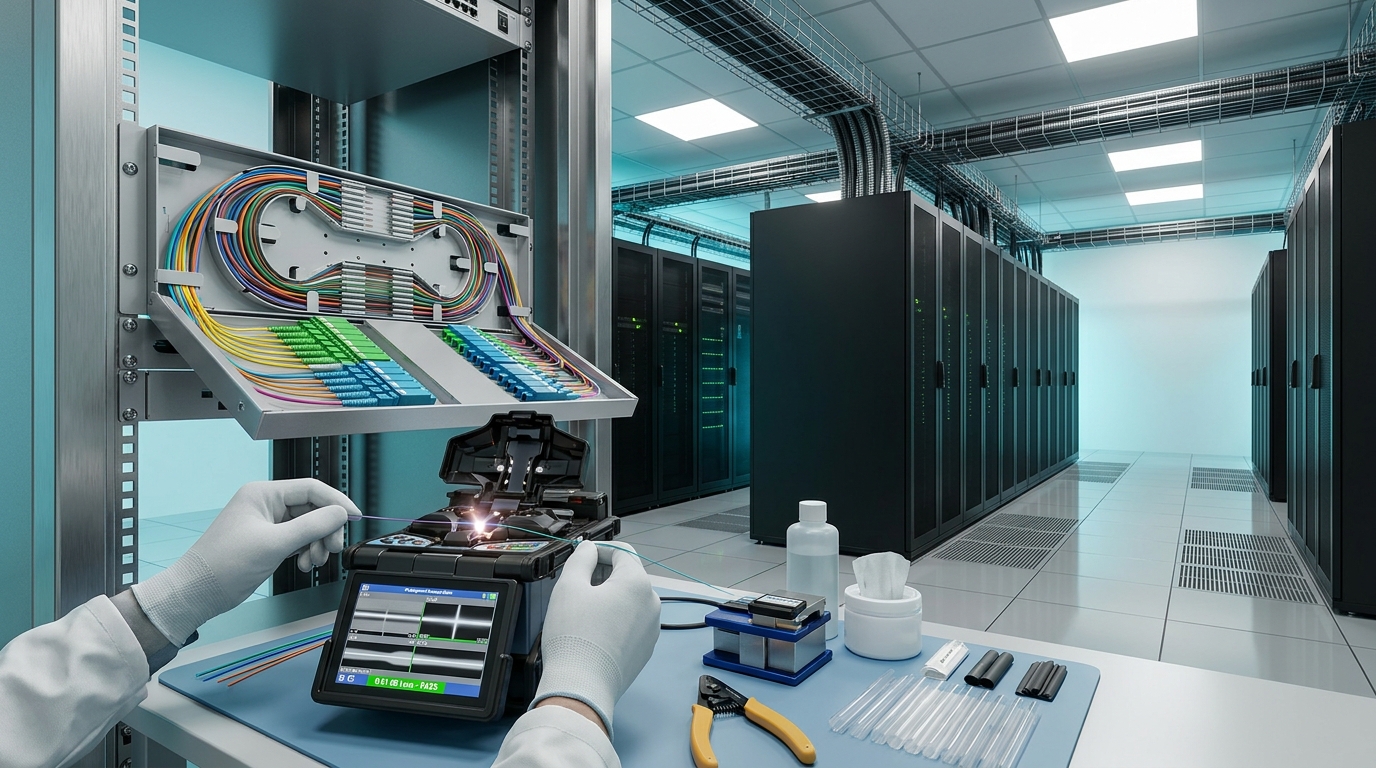

Fiber Optic Enclosure & Core Fusion Splicing Tray

Single-Mode OS2 & Multi-Mode OM4 High-Core Fiber Backbone

TOPIC 02 // SINGLE-MODE OS2 & MULTI-MODE OM4 ARMORED FIBER

High-Core Fiber Backbone & Precision Fusion Splicing

Connect building distribution frames (MDF/IDF) and inter-building campus networks with high-core fiber optic backbones. We deploy 12 to 96-core Single-Mode OS2 (up to 40 km) and Multi-Mode OM4/OM5 laser-optimized fiber cables, terminated via precision core-alignment arc fusion splicing (<0.02dB loss).

check_circle Armored corrugated steel tape (CST) outer jacket protecting outdoor fiber against rodent damage.
check_circle Precision core-alignment fusion splicing achieving ultra-low insertion loss (< 0.02 dB per splice).
check_circle High-density MPO/MTP modular cassette patch panels supporting 40G/100G migration paths.

TOPIC 03 // 100% FLUKE CERTIFICATION & 25-YEAR WARRANTY

Versiv DSX-8000 OTDR Testing & Warranty Certification

Guarantee network integrity with rigorous 100% cable testing. Every copper link and fiber strand installed by Microlines undergoes comprehensive Fluke Versiv DSX-8000 CableAnalyzer and OptiFiber Pro OTDR testing, delivering PDF certification reports required to activate 25-Year Manufacturer System Performance Warranties.

check_circle 100% Link testing with Fluke DSX-8000 measuring NEXT, Return Loss, ACR-N, and Shield Integrity.
check_circle Tier-1 optical loss (LSPM) and Tier-2 OTDR fiber trace certification for all optical links.
check_circle Direct activation of CommScope / Schneider 25-Year System Component & Application Warranty.

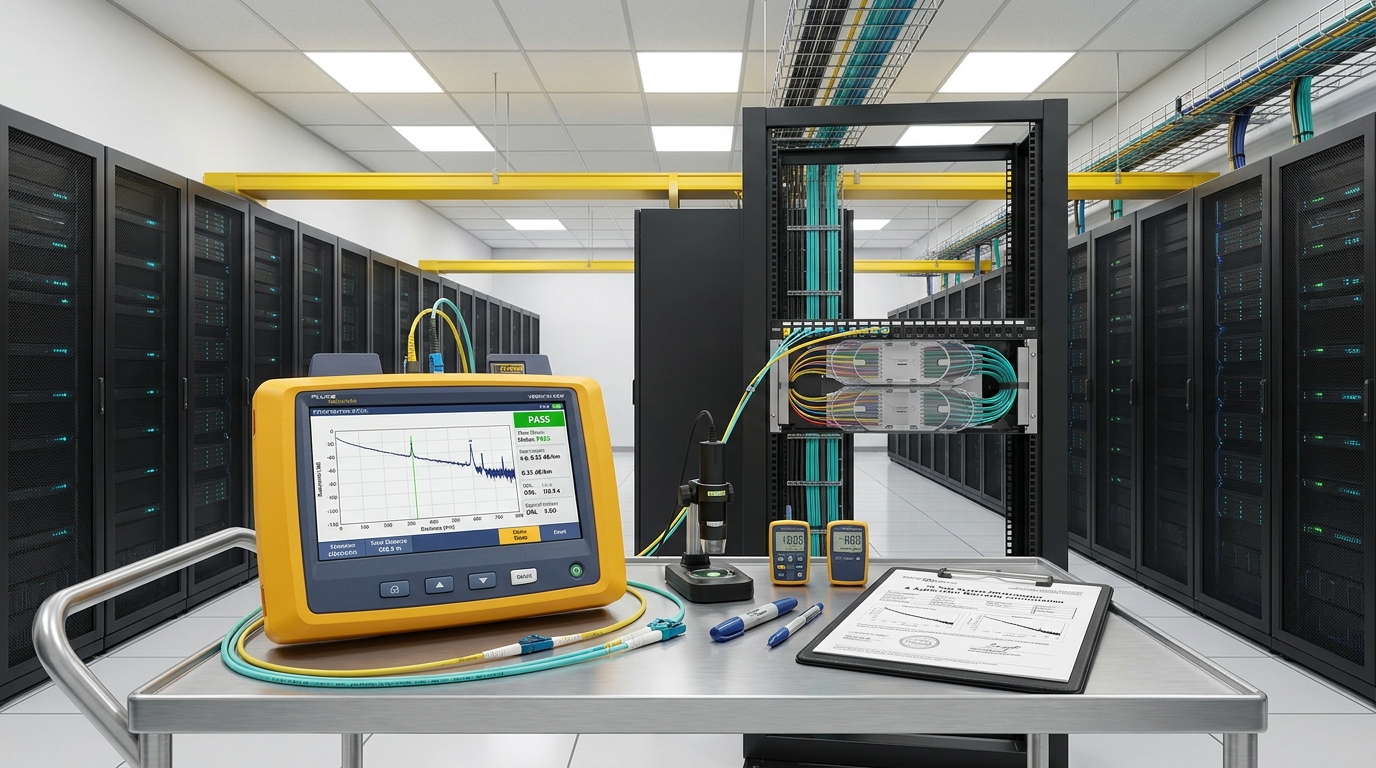

Engineer using Fluke Versiv DSX Cable Tester on Patch Panel

Fluke Versiv DSX-8000 Cable Certification & OTDR Trace

Engineering Specifications Matrix

Copper Cabling Standard	ANSI/TIA-568.2-D Category 6A F/UTP & S/FTP (500 MHz, 10GBASE-T, 23 AWG Solid Copper)
Fiber Optic Cable Type	Single-Mode OS2 (9/125µm) & Multi-Mode OM4/OM5 (50/125µm Laser-Optimized) Armored
Testing & Certification	Fluke Versiv DSX-8000 CableAnalyzer Channel/Permanent Link & OptiFiber Pro OTDR
Patch Panels & Outlets	24-Port 1U High-Density Shielded Keystone Patch Panels & Cat6A Shuttered Information Outlets
Fire Safety Rating	Low Smoke Zero Halogen (LSZH) / Flame Retardant IEC 60332-1, IEC 60754-1, IEC 61034-2
Cable Management	Perforated Galvanized Cable Trays, Wire Mesh Cable Trays, Vertical 0U Organizers
System Warranty	25-Year Manufacturer System Component, Performance, and Application Guarantee

Related Cabling Hardware & Audit Services

CommScope Systimax Cat6A cable reels, 24-core armored fiber cables, shielded patch panels, and Fluke certification audits.

CommScope Systimax GigaSPEED X10D Cat6A Cable Reel

CommScope Systimax Cat6A Reel

10Gbps 500MHz F/UTP Cable

305m box of 23 AWG solid copper Cat6A F/UTP cable with LSZH flame-retardant outer jacket for 10G networks.

24-Core Single-Mode OS2 Armored Outdoor Fiber Cable

24-Core OS2 Armored Fiber

Single-Mode Campus Backbone

Corrugated steel tape (CST) armored outdoor Single-Mode OS2 fiber cable designed for duct and direct burial.

24-Port High-Density Cat6A Shielded Patch Panel

24-Port Cat6A Shielded Panel

1U Modular Keystone Panel

1U 24-port modular patch panel loaded with shielded Cat6A keystone jacks, grounding wire, and rear cable manager.

Fluke Cable Certification & Labeling Audit Package

Fluke Cable Certification Audit

Testing & Labeling Service

Includes 100% link testing with Fluke DSX-8000, PDF report generation, rack labeling, and 25-year warranty filing.

Frequently Asked Questions

Technical answers regarding Cat6A vs Cat6 performance, Single-Mode OS2 vs Multi-Mode OM4 selection, Fluke Versiv testing reports, and LSZH fire safety compliance.

1. Why is Category 6A (Cat6A) recommended over Category 6 (Cat6) for new enterprise network installations?

▼

Cat6A operates at 500 MHz (double Cat6’s 250 MHz) and guarantees 10Gbps data transmission speeds across the full 100-meter channel length. In contrast, Cat6 can only support 10Gbps up to 37-55 meters under ideal conditions. Cat6A is mandatory for supporting high-speed Wi-Fi 6E/7 Access Points (up to 10Gbps uplinks) and 90W 4PPoE high-power PoE devices.

2. How do I choose between Single-Mode OS2 and Multi-Mode OM4 fiber optic cables for campus backbones?

▼

Multi-Mode OM4 (laser-optimized 50/125µm) is cost-effective for short data center or building backbone runs up to 400 meters at 10Gbps or 100 meters at 40G/100G. Single-Mode OS2 (9/125µm) supports virtually unlimited distances (up to 10-40 km) and is ideal for inter-building campus backbones and long-distance ISP links.

3. What information is included in a 100% Fluke Versiv DSX-8000 Cable Analyzer report?

▼

A Fluke DSX-8000 test report certifies that each copper link meets strict ANSI/TIA-568.2-D specs. It measures exact cable length, WireMap (pin continuity), Near-End Crosstalk (NEXT), Return Loss, Insertion Loss, Resistance Unbalance (critical for 90W PoE), and Alien Crosstalk (ANEXT). Passed PDF reports are submitted to the cabling vendor to issue the 25-Year Warranty.

4. What is Low Smoke Zero Halogen (LSZH) cable jacketing and why is it legally required in commercial buildings?

▼

LSZH cable jackets are made of thermoplastic compounds that emit limited dense smoke and zero toxic halogen gases (like chlorine or fluorine) when exposed to high heat or fire. Standard PVC cables produce toxic, corrosive hydrochloric gas during a fire, posing grave health risks to evacuating personnel and damaging sensitive electronics.

5. What does the 25-Year Manufacturer System Performance Warranty cover?

▼

The 25-year system warranty (backed by CommScope Systimax, Schneider, etc.) guarantees that the installed end-to-end passive cabling system will support all current and future network applications designed for that TIA cabling category (e.g. 10GBASE-T on Cat6A). If a cable or jack fails due to manufacturing defects, the vendor covers 100% of component replacement and labor costs.
