CASE STUDY: COMMERCIAL REAL ESTATE

Structured Cabling & IT Infrastructure
2,500+ CAT6A Drops & 10G Fiber Backbone

How Microlines engineered a 10Gbps structured cabling architecture across a 15-story corporate tower using CommScope Systimax CAT6A copper, OM4 multi-mode fiber backbones, and 42U Netrack enclosures backed by a 25-year warranty.

apartment

Commercial

15-Story Tower

lan

2,500+ Drops

CAT6A Ethernet Nodes

verified_user

25 Years

Systimax System Warranty

verified

99.99%

Fluke Test Pass Rate

analytics The Challenge

A new 15-story commercial office tower required high-speed connectivity for multiple enterprise tenants. The builder needed a future-proof, fire-compliant structured cabling infrastructure supporting 10Gbps workstation data, VoIP telephony, CCTV streams, and PoE+ lighting without signal degradation across vertical riser shafts.

Key Objective:

Install 2,500+ CAT6A LSZH drops, link floor distribution racks with OM4 10G fiber optics, perform 100% Fluke DSX-8000 OTDR certification, and register a 25-year Systimax warranty.

cable The Microlines Solution

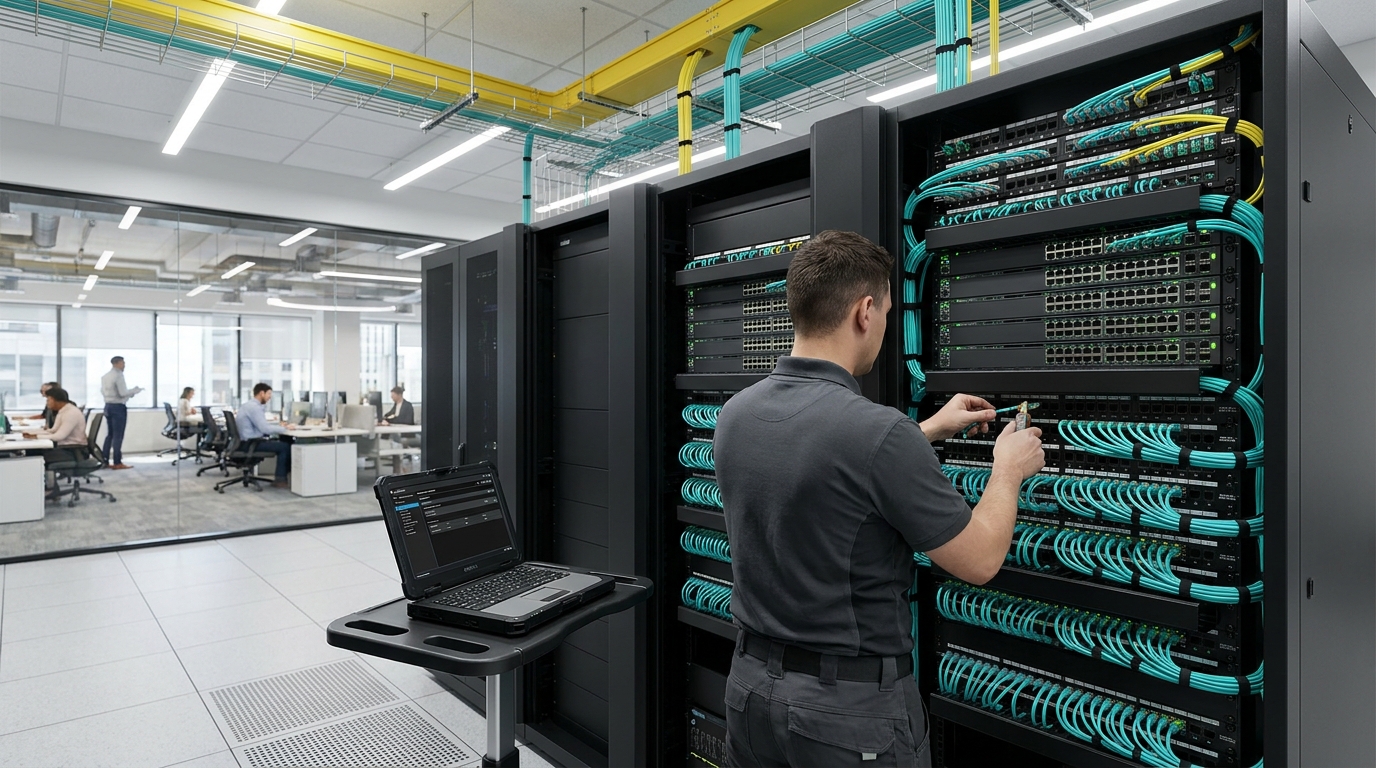

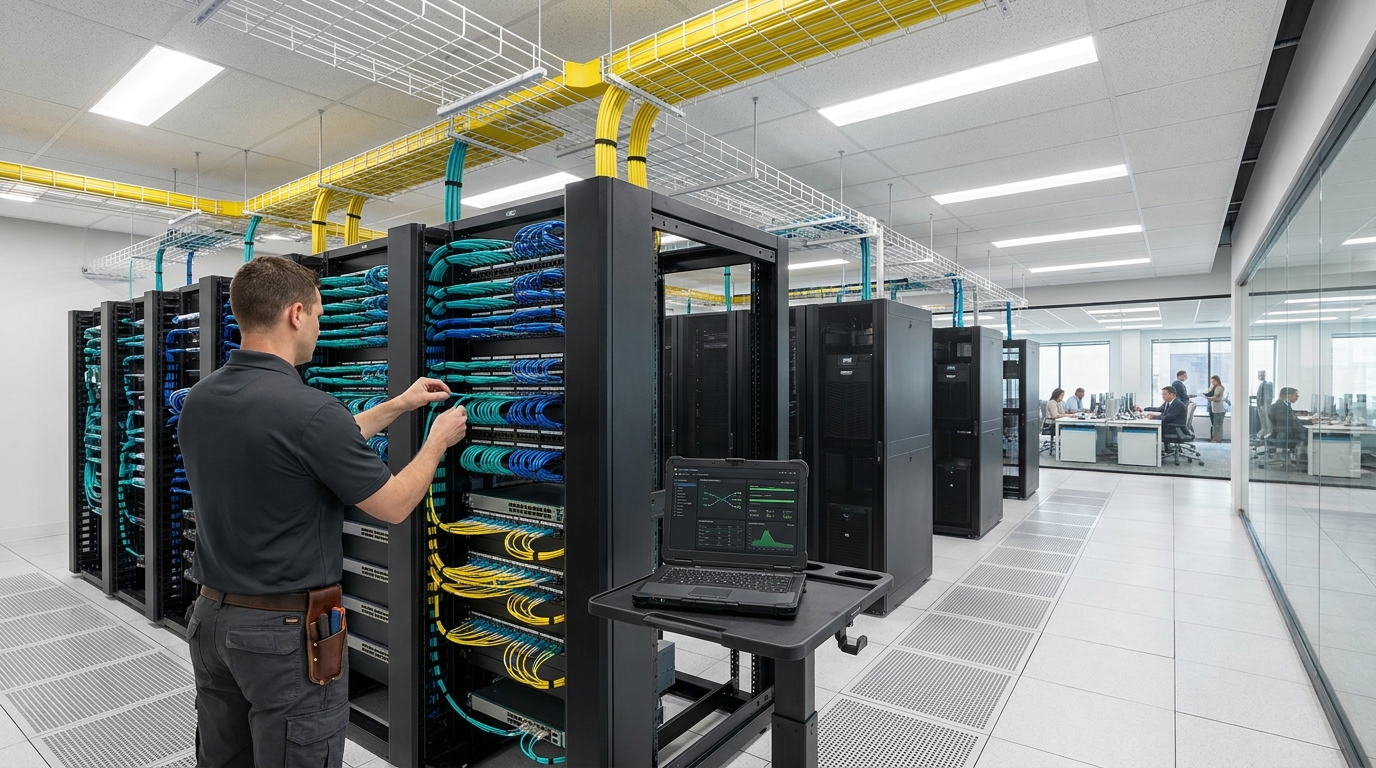

Microlines designed a structured cabling system featuring CommScope Systimax GigaSPEED X10D CAT6A copper drops terminated into 24-port modular patch panels inside 42U Netrack server enclosures. Inter-floor risers were connected via redundant 12-core OM4 fiber optic trunks.

Engineering Deliverables:

✓ 2,500+ CommScope Systimax CAT6A LSZH Copper Workstation Drops
✓ OM4 10Gbps Multi-Mode Fiber Optic Riser Backbone Trunks
✓ 15 Floor Distribution Communications Racks (Netrack 42U Enclosures)

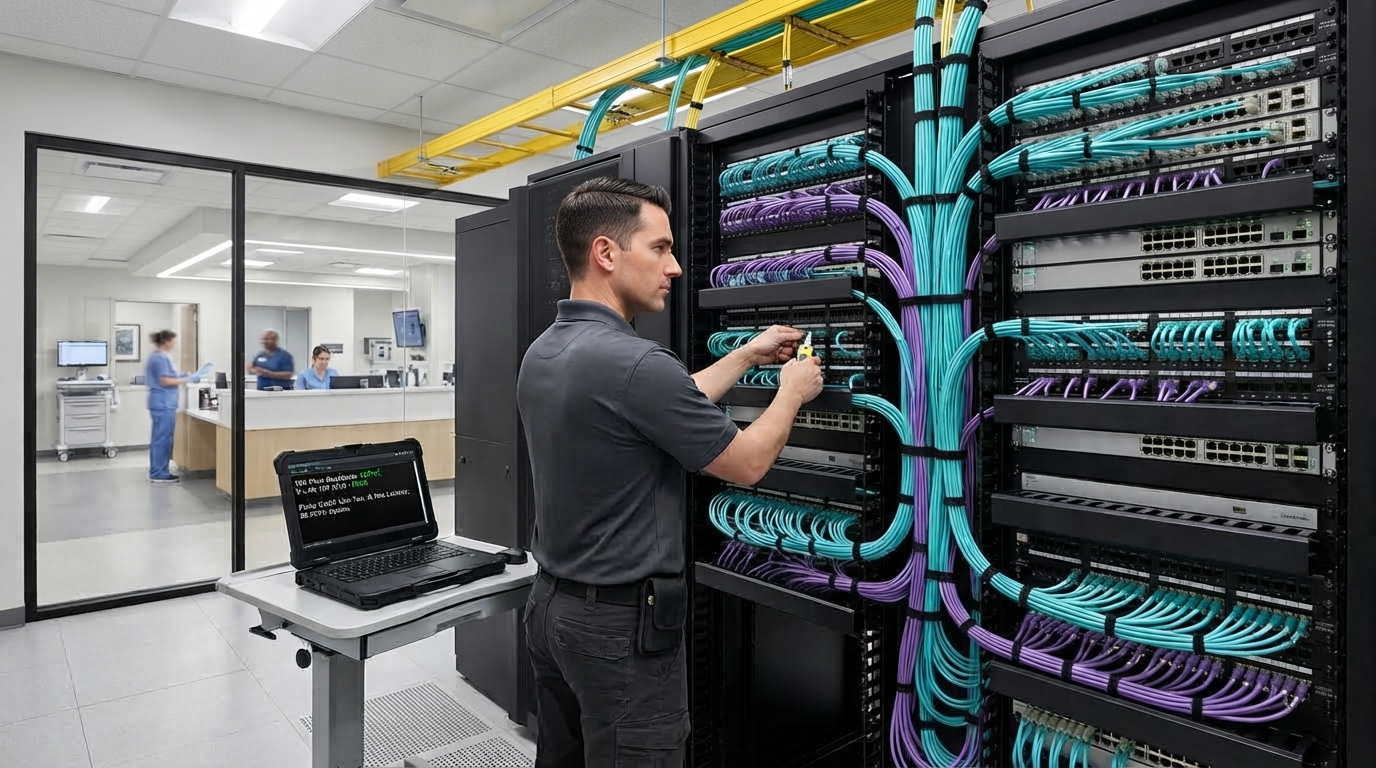

✓ 100% Fluke DSX-8000 Cable Certification & OTDR Testing Reports
✓ Official 25-Year CommScope Systimax System Performance Warranty

OEM Products Deployed in Project 6

Certified enterprise cabling, fiber trunks, and rack systems installed by Microlines engineers.

COMMSCOPE SYSTIMAX Systimax CAT6A Cable

Systimax GigaSPEED CAT6A Cable

10Gbps bandwidth up to 100m, LSZH flame-retardant jacket, 500MHz channel performance.

COMMSCOPE SYSTIMAX Systimax OM4 Fiber

Systimax LazrSPEED OM4 Fiber

12-Core multi-mode OM4 fiber trunk cable, 10G/40G/100G speed support up to 550 meters.

NETRACK ENCLOSURES Netrack 42U Server Rack

Netrack 42U Server Enclosure

800x1000mm server rack, perforated mesh doors, high-density cable managers, PDU brackets.

SCHNEIDER / APC APC Smart-UPS 10kVA

APC Smart-UPS RT 10kVA Online

Double-conversion online UPS, rack-mount 6U form factor, redundant hot-swap batteries for IDF racks.

Frequently Asked Questions

Technical questions regarding CAT6A cable standards, Fluke testing, and 25-year OEM warranty.

CommScope Systimax CAT6A supports full 10Gbps Ethernet transmission at up to 100 meters while eliminating alien crosstalk (AXT), ensuring future-proof bandwidth for 4K video conferencing, Wi-Fi 6E APs, and high-speed cloud workstations.

Every copper drop and fiber strand undergoes 100% Fluke DSX-8000 OTDR and channel testing, verifying alien crosstalk, NEXT, return loss, and attenuation against ISO/IEC 11801 Class EA standards.

LSZH flame-retardant cable jackets emit minimal toxic fumes and zero corrosive halogen gases in the event of a fire, fulfilling strict NBC safety regulations for high-density corporate towers.

Yes, as a certified CommScope Systimax & AMP partner, Microlines delivers an official 25-year extended product and application performance warranty directly registered with the OEM.
